GAHP AR
Reversible absorption heat pump powered by gas and air source renewable energy.
For high efficiency heating and cooling.
Benefits
- Up to 33.3% utilisation of air source renewable energy. Designed to exceed peak efficiencies (GUE - Gas Utilization Efficiency) of 150%, reductions in annual heating costs and in CO2 emissions compared to the best condensing boilers.
- The most beneficial heating system to enhance the energy qualification of buildings, because it permits a considerable promotion of the building's energy classification with the consequent increase in the value of the building.
- Ensures efficiency levels in excess of 130% even at -7 °C. so it is also used in especially cold climates. No back-up systems are required.
- Reduces electricity requirements up to 86% compared to traditional electrical systems, thanks to the prevalent use of natural gas.
- With a GAHP-AR, every year 3.6 Tons of CO2 emissions are saved, which are equivalent to those absorbed by 518 trees or those produced by 2 green cars; every year 1.6 TOE are saved.
Versions
- Available in standard and low-noise version.
- Available also in:
- pre-assembled groups Link on demand: for configurations of more power or combined with Robur gas absorption chillers or condensing boiler;
- Trivalent Integrated Outdoor Package with condensing boiler Gitié ARAY.
Applications
- Ideal for heating and cooling industrial, commercial, accommodation and tertiary utilities, for refurbishment and retrofitting.
- For outdoor installation.

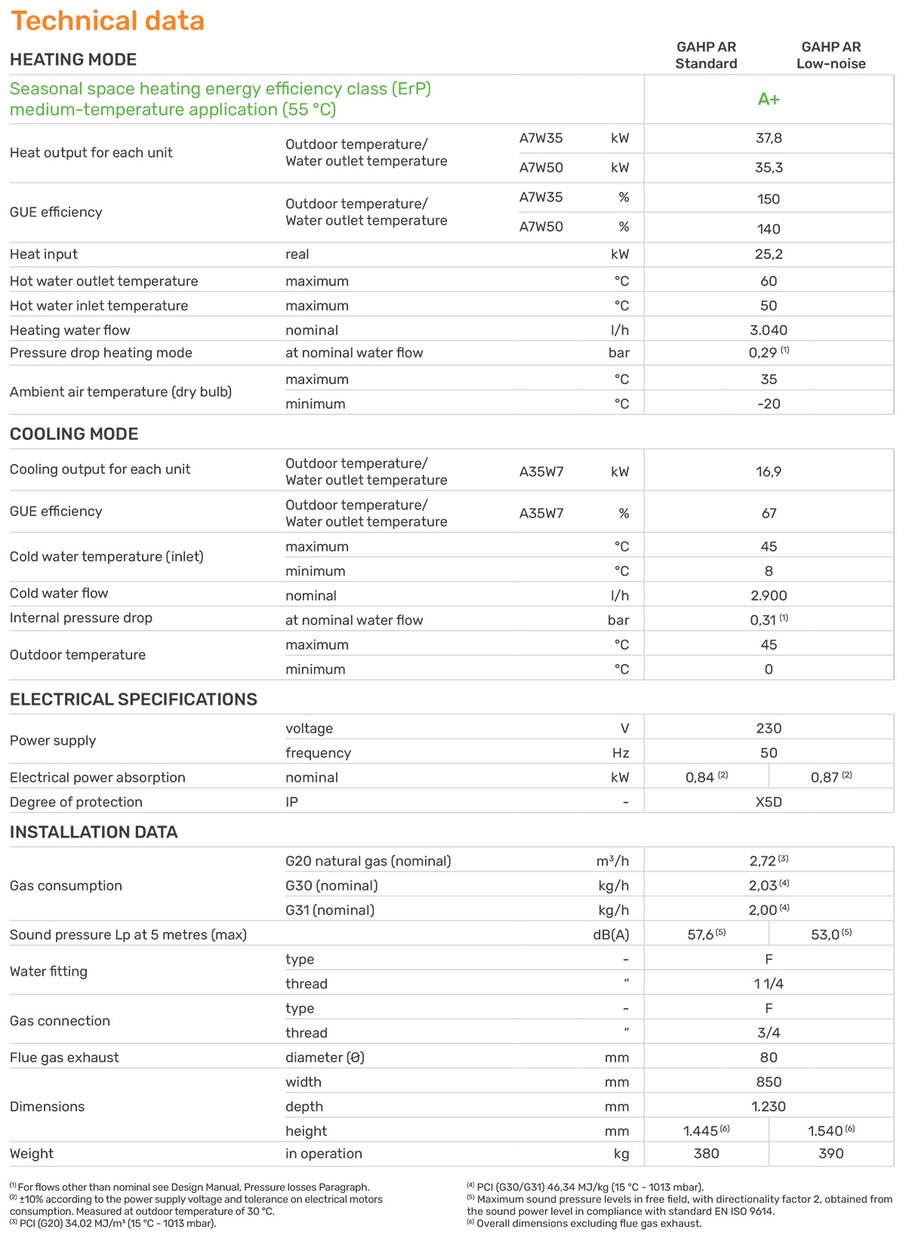

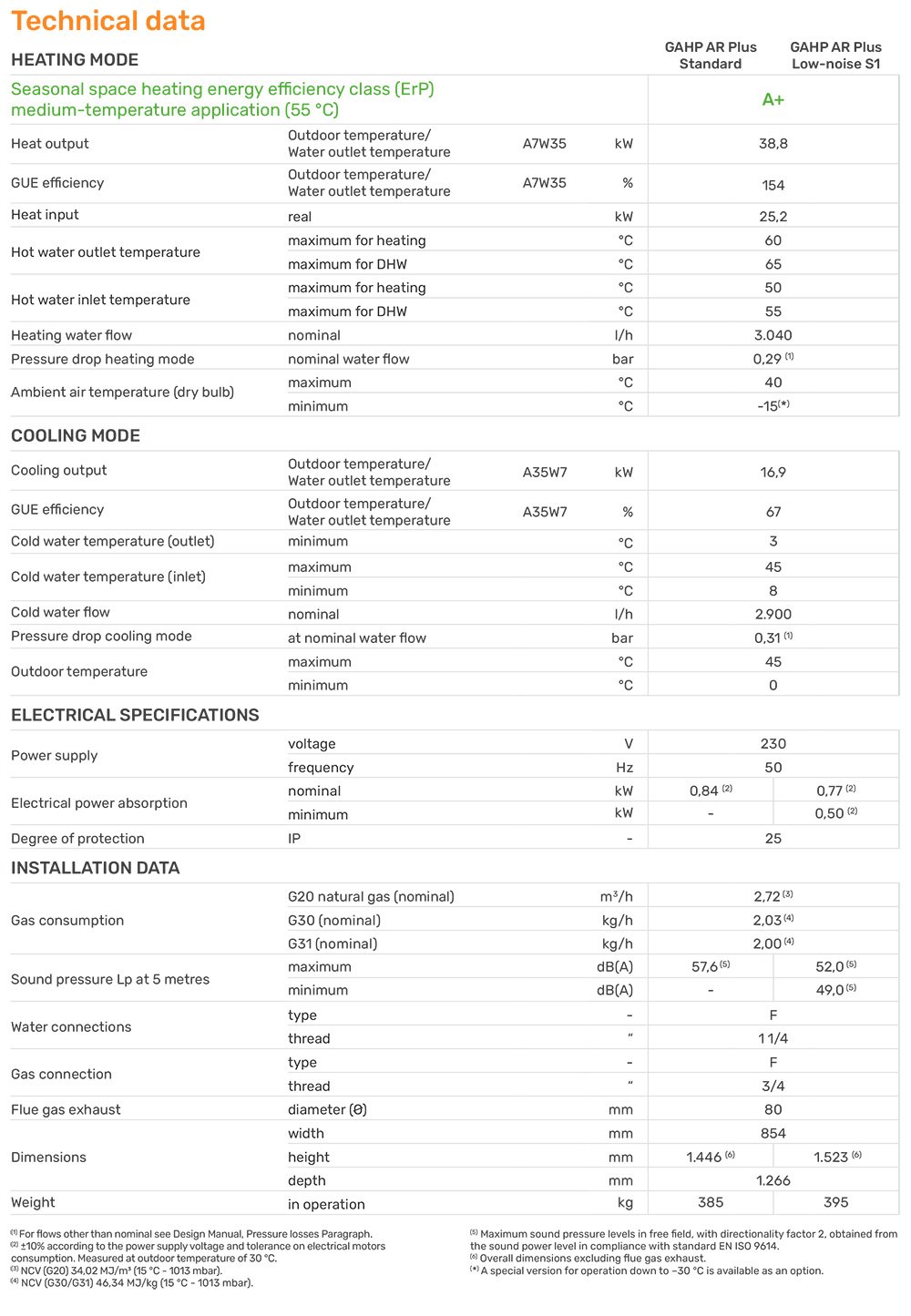

Technical table
Heating operation mode(1)
Energy class ErP (55 °C operation): A+
Heating capacity (working point A7/W35): kW 37.8
G.U.E.(2) (Gas Utilization Efficiency) - working point A7/W35: 150%
Heating capacity (working point A7/W50): kW 35.3
G.U.E. (Gas Utilization Efficiency) - working point A7/W50: 140%
Maximum outlet water temperature (ΔT=10°C): 60°C
Ambient operating temperature (dry bulb) max: 35°C
Cooling operation mode(1)
Cooling capacity (working point A35/W7): kW 16.9
G.U.E.(2) (Gas Utilization Efficiency) - working point A7/W35: 67%
Minimum outlet water temperature: 3°C
Ambient operating temperature (dry bulb) max/min: 45/0°C
Nominal electrical power (3) standard version/low-noise version: 0.9/0.93 kW
Sound power Lw (4) standard version/low-noise version: 82.1/76.1 dB(A)
Sound pressure Lp at 5 metres (5) standard version/low-noise version: 60.1/54.1 dB(A)
(1) Nominal conditions according to EN 12309-2.
(2) Equivalent to COP 3.75 on energy conversion factor of 2.5.
(3) ± 10% depending on the power supply voltage and on the tolerance of the electrical motors power consumption.
(4) Sound power values measured according to EN ISO 9614.
(5) Free field, at the front, direction factor 2.
Controllers
DDC
Robur Box 100
Robur Box 200
Pannello Comfort Control Interface (CCI)
Final user literature
Installation, use and maintenance manual | All Absorption products
Preassembled groups
Installation, use and maintenance manual | All Abso products
Direct Digital Controller (DDC)
Installation, use and maintenance manual | All Absorption products
Comfort Control Interface (CCI)
Installation, use and maintenance manual | All Absorption products
Roburbox100 - Plant Control Interface - Application manual
Installation, use and maintenance manual | All Absorption products
Roburbox100 - Plant Control Interface - Installation and use manual
Installation, use and maintenance manual | GAHP A, GA ACF, GAHP AR, GAHP GS, GAHP WS, GA ACF HR, GA ACF TK, GA ACF HT, GA ACF LB
Roburbox200 - Plant Control Interface - Installation and use manual
Installation, use and maintenance manual | GAHP AR
