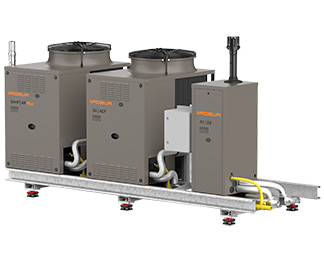

Link Preassembled group

Multiple preassembled packages for heating, domestic hot water production and cooling

Robur LINK preassembled packages are the complete all-in-one solutions for heating, cooling and domestic hot water production and are ready to be installed.

Maximum customisation is guaranteed by a dedicated assembly line which combines gas and renewable energy absorption heat pumps with condensing boilers and chillers (depending on functional requirements) which bring together efficiency and maximum ease of installation in a single product.

Take a look at the Robur LINK products to find the best one for your project.

Benefits

  • The thermal energy requirements for heating, domestic hot water and cooling are typically never equal and balanced in cooling systems. In addition, the power draws are never constant, but follow very different load profiles.
    That’s why we created LINK. They are factory preassembled systems made up of groups of heat pumps, condensing boilers and chillers. They are appropriately mounted on a single supporting structure, hydraulically and electrically wired to form a true outdoor thermo-cooling plant best suited to the energy requirements of the system.
  • There are many possible combinations with a range of fittings and versions:
    - link with heating-only heat pumps for a modular heating and domestic hot water production system;
    - link with reversible heat pumps for a modular heating and cooling system;
    - link with mixed heat pump and condensing boilers for a modular HYBRID heating and domestic hot water production system;
    - link with mixed heat pump and chillers for a system with the most appropriate ratio of heat output to cooling output;
    - link with heat pumps, boilers and chillers for systems requiring heating/cooling and domestic hot water output to be separate.
  • Links can be "customised" according to different system requirements:
    - water circuits: 2-, 4-, and 6 pipes;
    - fan model: Standard or Low-noise;
    - water circulation: with independent standard or oversize circulation pumps (one for each installed unit) or without circulation pumps on board.
  • They are equipped with their own electrical panel to which all mounted units are connected. The power supply and remote control are connected at a single point.
  • They are equipped with 2”-diameter stainless steel manifolds, protected by closed-cell insulation and aluminium foil for hydraulic connection to the system. Available in 2-,4-, and 6-pipes versions (1, 2 or 3 independent water circuits).
  • They are built on a base consisting of steel C-beams of various lengths depending on the number and type of units installed, with steel crossbeams designed to receive anti-vibration supports (available as accessories).
  • They are equipped with an exhaust manifold for flue gas condensate (for models using GAHP A, GAHP GS, GAHP WS absorption heat pumps and AY boilers).
  • The assembled units can be equipped with their own high-efficiency circulation pump, check valve and connections to the main manifold, suitably protected from weathering.

Factory Made hybrid solutions

Furthermore, the pre-assembled groups with the power sizes of the new AY Condensing boilers allow, with greater simplicity than in the past, Factory Made hybrid solutions (in which the ratio between the nominal useful heat output of the heat pump and the nominal useful heat output of the boiler must be ≤ 0.5) made and designed to work in combination with each other under a single specially designed advanced control; these solutions make it possible to obtain incentives increased by 20% in Italy.

Ask more



Controllers

DDC

DDC

Robur Box 100

Robur Box 100

Robur Box 200

Robur Box 200

Pannello Comfort Control Interface (CCI)

Pannello Comfort Control Interface (CCI)

Literature

Download technical files

Link Preassembled group
Link Preassembled group
Link Preassembled group
Link Preassembled group
Link Preassembled group

Incentives for the renovation of heating systems in the Public Administration

Incentives for the renovation of heating systems in the Public Administration
  • Customer Pietrelcina elementary school
  • Products GAHP GS, Link Preassembled group
  • Application School buildings

Gas air conditioning for international offices

Gas air conditioning for international offices
  • Customer New York Department of Sanitation
  • Products GA ACF TK, Link Preassembled group
  • Application Public buildings

Retrofit with radiators in the harsh climate of Flanders

Retrofit with radiators in the harsh climate of Flanders
  • Customer Administrative centre Zwevegem
  • Products GAHP A, Link Preassembled group
  • Application Public buildings

The enlargement of the electric cabin was avoided thanks to absorption technology

The enlargement of the electric cabin was avoided thanks to absorption technology
  • Customer Erba S.p.A.
  • Products GAHP A, GA ACF, GAHP AR, Condensing boiler AY, Link Preassembled group
  • Application Industry

Payback of only 4 years for hospital with gas-fired heat pump system

Payback of only 4 years for hospital with gas-fired heat pump system
  • Customer GGz Breburg Medical Center
  • Products GAHP A, Link Preassembled group
  • Application Public buildings

Process application in overseas food processing

Process application in overseas food processing
  • Customer Golden Town Apple Products
  • Products GA ACF TK, Link Preassembled group
  • Application Industry

Pre-heating of the swimming pool and air conditioning of the hotel rooms with a single heat pump

Pre-heating of the swimming pool and air conditioning of the hotel rooms with a single heat pump
  • Customer Hotel Flora
  • Products GA ACF, GAHP WS, Condensing boiler AY, Link Preassembled group
  • Application Hotel

The rooftop installation has allowed the recovery of valuable interior space

The rooftop installation has allowed the recovery of valuable interior space
  • Customer Zdrój Cinema
  • Products GAHP AR, Link Preassembled group
  • Application Tertiary

The first hotel in Italy that has obtained in class A thanks to the air conditioning system with gas heat pumps

The first hotel in Italy that has obtained in class A thanks to the air conditioning system with gas heat pumps
  • Customer Hotel Holiday Inn
  • Products GA ACF, GAHP AR, GA ACF HR, Condensing boiler AY, Link Preassembled group
  • Application Hotel

Modular system adjustable according to the needs of the various structures of the hotel group

Modular system adjustable according to the needs of the various structures of the hotel group
  • Customer LO.AN Group Hotels
  • Products GA ACF, Condensing boiler AY, Link Preassembled group
  • Application Hotel

Gas heat pump and condensing boilers for an historical curial (or religious) building of 1200 sq.m.

Gas heat pump and condensing boilers for an historical curial (or religious) building of 1200 sq.m.
  • Customer Palazzo Passi - San Filastro
  • Products GAHP A, Condensing boiler AY, Link Preassembled group
  • Application Tertiary

Electricity use reduced to one eighth for the same cooling capacity for the haute cuisine academy

Electricity use reduced to one eighth for the same cooling capacity for the haute cuisine academy
  • Customer Boscolo Etoilé Academy
  • Products GA ACF, GAHP AR, GA ACF HR, Condensing boiler AY, Link Preassembled group
  • Application Hotel

Energy-efficient, cost-effective and innovative solution: goal achieved

Energy-efficient, cost-effective and innovative solution: goal achieved
  • Customer Slupsk Technological Centre
  • Products GA ACF, GA ACF HR, Condensing boiler AY, Link Preassembled group
  • Application Tertiary

Residential central heating system with low energy costs offering full satisfaction of the condominiums

Residential central heating system with low energy costs offering full satisfaction of the condominiums
  • Customer MFH Multy Family Building in Przytoczna
  • Products GAHP A, Condensing boiler AY, Link Preassembled group
  • Application Condominiums

Highest BREEAM values achieved for an English university that has installed gas-fired heating units

Highest BREEAM values achieved for an English university that has installed gas-fired heating units
  • Customer University Church of England Academy
  • Products GAHP A, Link Preassembled group
  • Application School buildings

Public funding for the thermal system due to high efficiency in the European Comprehensive Institute

Public funding for the thermal system due to high efficiency in the European Comprehensive Institute
  • Customer Porg Ostrava Primary and Secondary School
  • Products GAHP A, Condensing boiler AY, Link Preassembled group
  • Application School buildings

145% efficiency, even at -7°C near Arctic Circle

145% efficiency, even at -7°C near Arctic Circle
  • Customer Sortland Primary School
  • Products GAHP A, Link Preassembled group
  • Application School buildings

Rooftop central heating for a large apartment building: freed up space and maximum efficiency

Rooftop central heating for a large apartment building: freed up space and maximum efficiency
  • Customer Residential building in Terneuzen
  • Products GAHP A, Link Preassembled group
  • Application Condominiums

Energy upgrade of a Belgian school, without the need for back-up at low temperatures

Energy upgrade of a Belgian school, without the need for back-up at low temperatures
  • Customer Gent Primary School
  • Products GAHP A, Link Preassembled group
  • Application School buildings

The rooftop installation made it possible to overcome the constraints for protecting historic buildings in the heart of Europe

The rooftop installation made it possible to overcome the constraints for protecting historic buildings in the heart of Europe
  • Customer Calypso office building
  • Products GAHP AR, Condensing boiler AY, Link Preassembled group
  • Application Tertiary

Precise and constant thermo-hygrometric conditions in the fungiculture sector: reduced operating costs

Precise and constant thermo-hygrometric conditions in the fungiculture sector: reduced operating costs
  • Customer Funghi Valentina
  • Products GAHP WS, GA ACF HR, GA ACF TK, Link Preassembled group
  • Application Industry

High efficiency heating of 40,000 square meters of greenhouses for organic crops

High efficiency heating of 40,000 square meters of greenhouses for organic crops
  • Customer Organic greenhouse Markhaven Gartneriet
  • Products GAHP A, Condensing boiler AY, Link Preassembled group
  • Application Industry

Heating a greenhouse in Denmark: flowering is guaranteed even at cold outside temperatures

Heating a greenhouse in Denmark: flowering is guaranteed even at cold outside temperatures
  • Customer Lundegaarden Greenhouse
  • Products GAHP A, Link Preassembled group
  • Application Industry

Gas air-conditioning of a commercial space: up to 86% reduction in electricity requirements

Gas air-conditioning of a commercial space: up to 86% reduction in electricity requirements
  • Customer Mitsubishi car dealer
  • Products GA ACF TK, Condensing boiler AY, Link Preassembled group
  • Application Tertiary

Air conditioning with gas heat pumps for a Polish dealership: monitored efficiency

Air conditioning with gas heat pumps for a Polish dealership: monitored efficiency
  • Customer Mercedes Benz car dealer
  • Products GAHP AR, Condensing boiler AY, Link Preassembled group
  • Application Tertiary

High-efficiency gas geothermal heating for a condominium: also a reduction of probe investment costs

High-efficiency gas geothermal heating for a condominium: also a reduction of probe investment costs
  • Customer Multi-family house
  • Products GAHP GS, Link Preassembled group
  • Application Condominiums

Gas Absorption heat pumps for one of the biggest hospital in Hungary

Gas Absorption heat pumps for one of the biggest hospital in Hungary
  • Customer Buda Hospital of the Hospitaller order of Saint John of God
  • Products GAHP AR, Condensing boiler AY, Link Preassembled group
  • Application Tertiary
