Condensing boiler AY

Outdoor modulating condensing boilers

Heating and domestic hot water production. An ideal complement to absorption solutions in any environment.

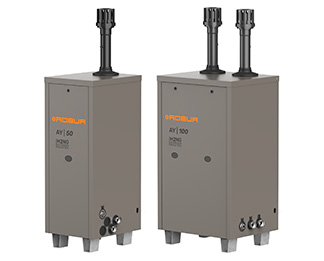

Condensing boiler AY

Benefits

  • Ideal for thermal integration of Robur absorption solutions.
  • Provides optimal peak heat output where climatic or economic conditions make it convenient.
  • 3 different sizes of modulating boiler output can be chosen.
  • They are designed for outdoor installation for temperatures down to -25 °C.
  • A

Versions

Customized pre-assembled groups Link on demand: for configurations of more power or combined with Robur gas absorption chillers or condensing boiler.

Technical table

        AY 35 AY 50 AY 100
Heat input nominal (1013 mbar - 15 °C) kW 34.0 50.0 99.8
minimum kW 4.1 5.0
Operating point 80/60 nominal heat input effective power kW 33.4 49.2 98.4
efficiency % 98.2 98.4 98.5
Operating point 50/30 nominal heat input efficiency % 106.4 106.8
Operating point Tr = 30 °C heat input 30% efficiency % 108.6 108.8
Ambient air temperature (dry bulb) maximum °C 45
  minimum °C -15
Electrical power absorption nominal kW 0.22 0.25 0.49
Gas consumption G20 natural gas (nominal) m3/h 3.60 5.29 10.58
Dimensions width mm 465 720
depth mm 575
height mm 1,184
Weight in operation kg 80 90 134



Controllers

DDC

DDC

Robur Box 100

Robur Box 100

Robur Box 200

Robur Box 200

Pannello Comfort Control Interface (CCI)

Pannello Comfort Control Interface (CCI)

Final user literature
