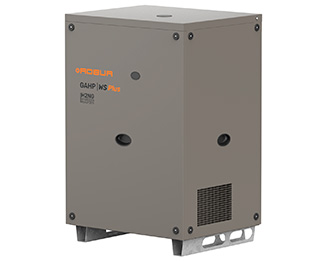

GAHP WS
Condensing absorption heat pump powered by gas and water source renewable energy.
For heating and cooling or the simultaneous production of hot water up to 65 °C and cold water up to 3 °C.
Benefits
- Up to 42.6% utilisation of water source renewable energy. Designed to exceed peak efficiencies (GUE - Gas Utilization Efficiency) of 174%, guaranteeing reductions in annual heating costs and in CO2 emissions compared to the best condensing boilers.
- Simultaneous production of hot and cold water, with overall efficency of 248%.
- It permits a considerable promotion of the building's energy classification with the consequent increase in the value of the building.
- In case of contemporary use, external sources are not required, thus reducing system and management costs.
- It reduces electricity consumption thanks to the prevalent use of gas.
- With a GAHP-WS, every year 5.5 Tons of CO2 emissions are saved, which are equivalent to those absorbed by 792 trees or those produced by 3 green cars; every year 2.4 TOE are saved.
Versions
- For outdoor and indoor installation.
- Also available in pre-assembled groups Link on demand for configurations of more power.
Applications
Heating and cooling applications
- Ideal for heating and DHW production. Preheating of DHW in summer in cooling operation (i.e. swimming pools).
- For new buildings and for refurbishment and retrofitting.
Simultaneous production of hot and cold water applications
- Simultaneous production of heating and cooling capacity, with overall efficency of 248% (equivalent to COP 6.20 on energy conversion factor of 2.5), recovering energy form renewable energy sources.
- Systems that simultaneously require heating and cooling (hospitals, manufacturing process or liquid-ring-based air conditioning systems).

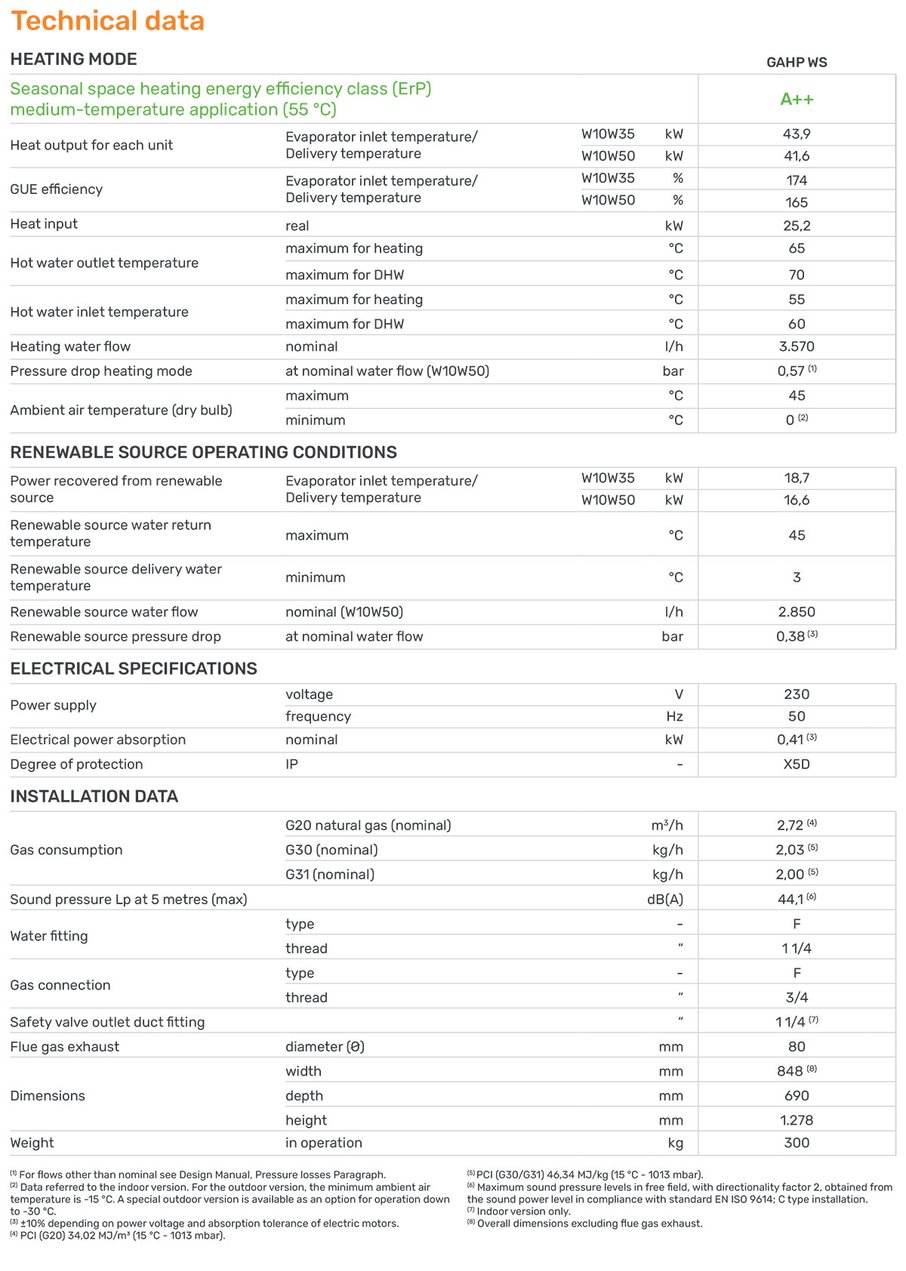

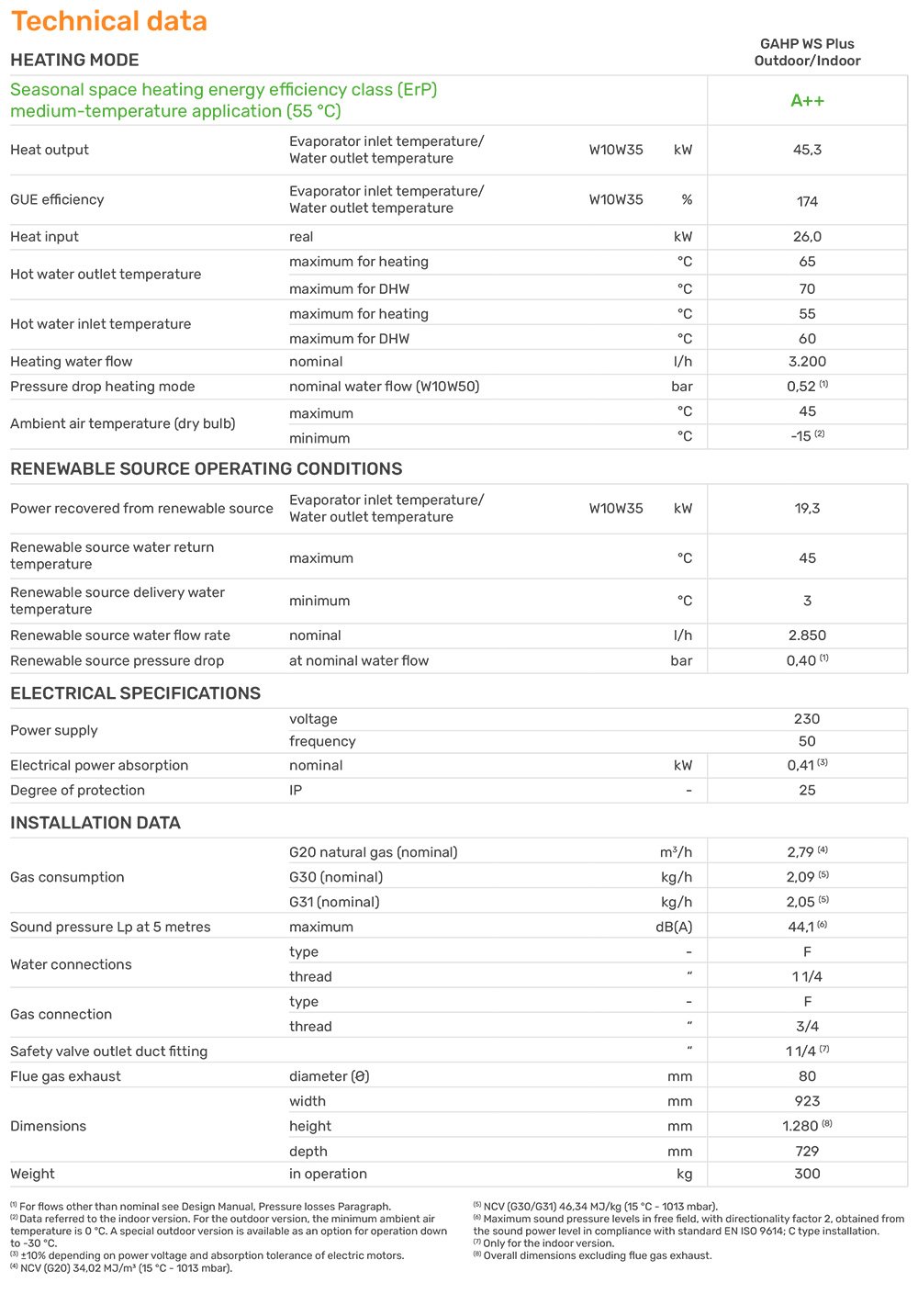

Technical table
Heating operation mode(1)
Energy class ErP (55 °C operation): A++
G.U.E.(2) (Gas Utilization Efficiency) - working point W10/W35: 174%
Heating capacity - working point W10/W35: kW 43.9
Capacity recovered from renewable source - working point W10/W35: kW 18.7
G.U.E. (Gas Utilization Efficiency) - working point W10/W50): 165%
Heating capacity - working point W10/W50): kW 41.6
Capacity recovered from renewable source - working point W10/W50): kW 16.6
Maximum outlet water temperature for heating/DHW: 65/70°C
Cooling operation mode
Cooling capacity - working point W12/W35: kW 18.7
Supplied capacity - condenser - working point W12/W35: kW 43.9
Cooling capacity - working point W12/W50): kW 16.8
Supplied capacity - condenser - working point W12/W50: kW 42.0
Operation with simultaneous use
Working point W10/W35 - Overall efficiency: 248%
Working point W10/W50 - Overall efficiency: 231%
Nominal electrical power(3): 0.41 kW
Sound power Lw(4): 70.4 dB(A)
Sound pressure Lp at 5 metres(5): 48.4 dB(A)
(1) Nominal conditions according to EN 12309-2.
(2) Equivalent to COP 4.35 on energy conversion factor of 2.5.
(3) ± 10% depending on the power supply voltage and on the tolerance of the electrical motors power consumption.
(4) Sound power values measured according to EN ISO 9614.
(5) Free field, at the front, direction factor 2. The values refer to the maximum measured.
Note: the capacity above mentioned is also the capacity available for cooling. For any further information, please refer to planning manual.
Controllers
DDC
Robur Box 100
Robur Box 200
Pannello Comfort Control Interface (CCI)
Final user literature
Installation, use and maintenance manual | All Absorption products
Preassembled groups
Installation, use and maintenance manual | All Abso products
Direct Digital Controller (DDC)
Installation, use and maintenance manual | All Absorption products
Comfort Control Interface (CCI)
Installation, use and maintenance manual | All Absorption products
Roburbox100 - Plant Control Interface - Application manual
Installation, use and maintenance manual | All Absorption products
Roburbox100 - Plant Control Interface - Installation and use manual
Installation, use and maintenance manual | GAHP A, GA ACF, GAHP AR, GAHP GS, GAHP WS, GA ACF HR, GA ACF TK, GA ACF HT, GA ACF LB
Roburbox200 - Plant Control Interface - Installation and use manual
Installation, use and maintenance manual | GAHP GS, GAHP WS
